Calendar and Timeline Wizard

What the Calendar & Timeline Wizard does

This wizard turns a plain table of events into an interactive calendar or timeline. You list your events once — date, title, description, category — choose one of twelve layouts, adjust the styling, and the wizard produces a Tabulizer ruleset that you import into your own site.

It covers two related jobs:

• Calendars place events on a grid by date — a month view, a working week, a single day, an agenda list, or a year at a glance.
• Timelines lay events out in order along a line — company history, a project roadmap, a CV, a product release history.

Both come with the same interactive extras: an event dialog, category filters, a search box and an Add to calendar export. You do not need to write any HTML, CSS or JavaScript.

How the pieces fit together

1. You build the calendar in the online wizard on the Tabulizer website.
2. The wizard gives you a ruleset archive (a .zip file).
3. You import that archive into Tabulizer on your own site.
4. You apply the ruleset to a table of events in one of your articles. Tabulizer combines your real events with the ruleset and renders the calendar.

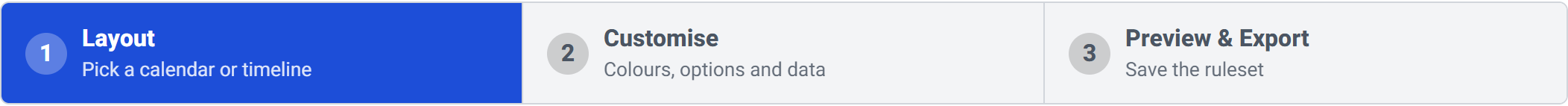

The wizard has three steps, shown in the progress bar on every page.

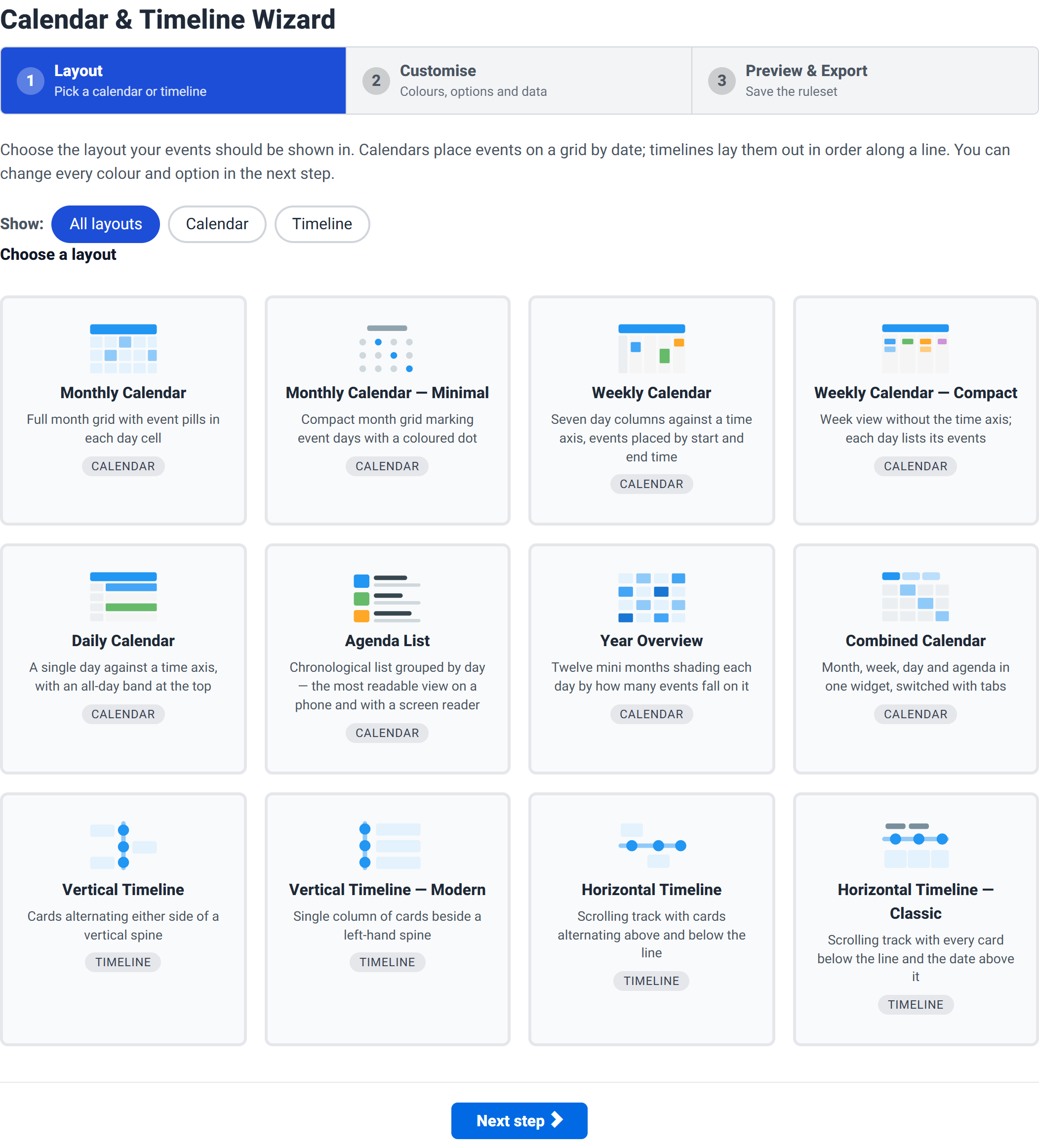

Step 1 — Choose a layout

The calendar layouts

Layout	What it shows	Best for
Monthly Calendar	Full month grid with event pills in each day cell	The usual choice. Events spread across a month.
Monthly — Minimal	Compact month grid marking event days with a coloured dot	A sidebar, or a month with far too many events to list.
Weekly Calendar	Seven day columns against a time axis, events placed by start and end time	Timetables, opening hours, class schedules.
Weekly — Compact	Week view without the time axis; each day lists its events	A week of events where the time of day matters less.

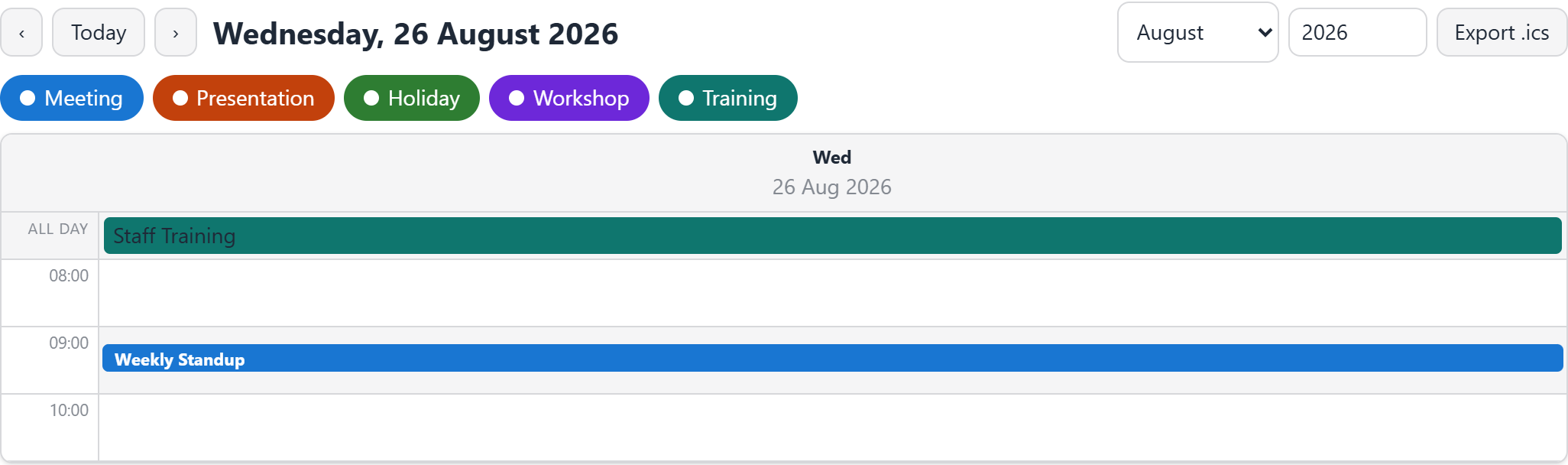

Daily Calendar	A single day against a time axis, with an all-day band on top	Conference programmes, a single event day.

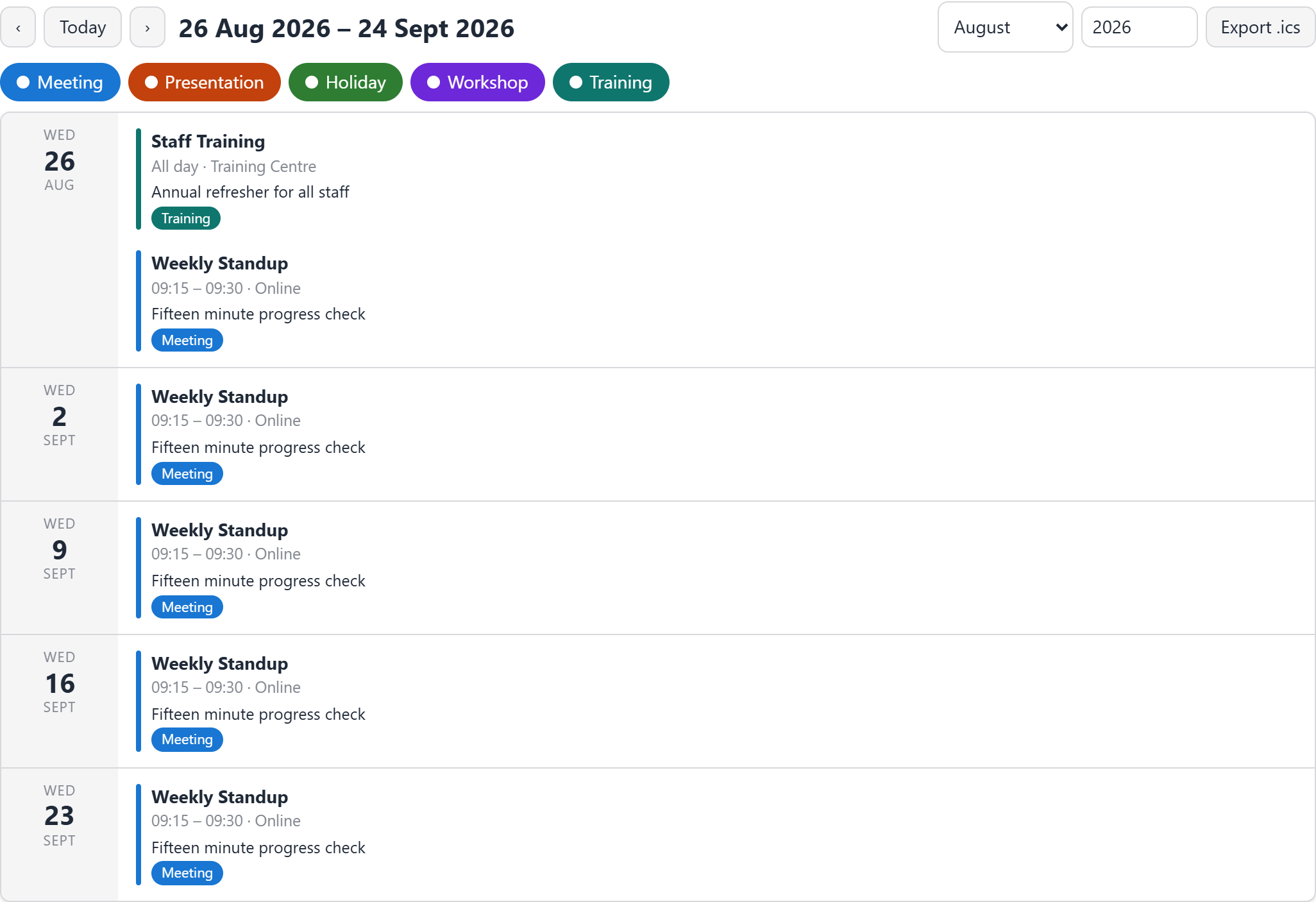

Agenda List	Chronological list grouped by day	The most readable option on a phone and with a screen reader.

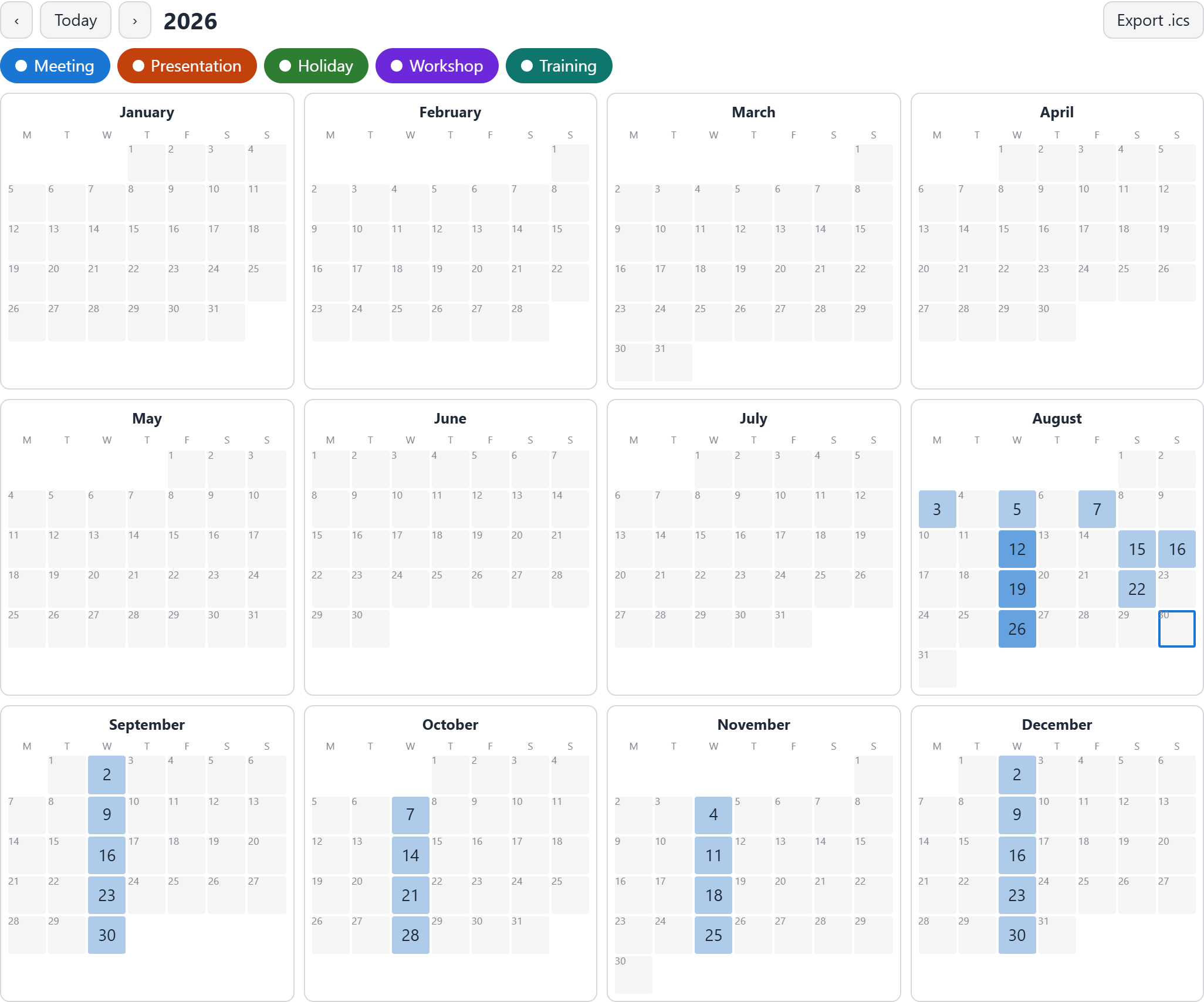

Year Overview	Twelve mini months shading each day by how many events fall on it	Seeing a whole year's density at a glance.
Combined Calendar	Month, week, day and agenda in one widget, switched with tabs	Letting visitors choose their own view.

The timeline layouts

Layout	What it shows	Best for
Vertical Timeline	Cards alternating either side of a vertical spine	Company history, a project's milestones.
Vertical — Modern	Single column of cards beside a left-hand spine	Narrow columns, and longer descriptions.
Horizontal Timeline	Scrolling track with cards alternating above and below the line	A roadmap read left to right.
Horizontal — Classic	Scrolling track with every card below the line and the date above it	A cleaner horizontal read with consistent card heights.

Which features go with which layout

Step 2 only shows the options your chosen layout can use, so it is worth knowing what belongs where before you choose.

Available in	Features
Every layout	Event dialog, category filters, search box, Add to calendar (.ics) export
Calendars only	Previous/next navigation, quick month and year jump, highlight today, week starts on, hide weekends
Timelines only	Show dates, marker size, alternating sides, entrance animation, milestone markers
Monthly and Combined	Events per day limit, with the rest collapsed behind a “+2 more” link
Weekly, Daily and Combined	Time axis range (the day's start and end hour), all-day event band
Agenda and Combined	How many days one page of the agenda covers

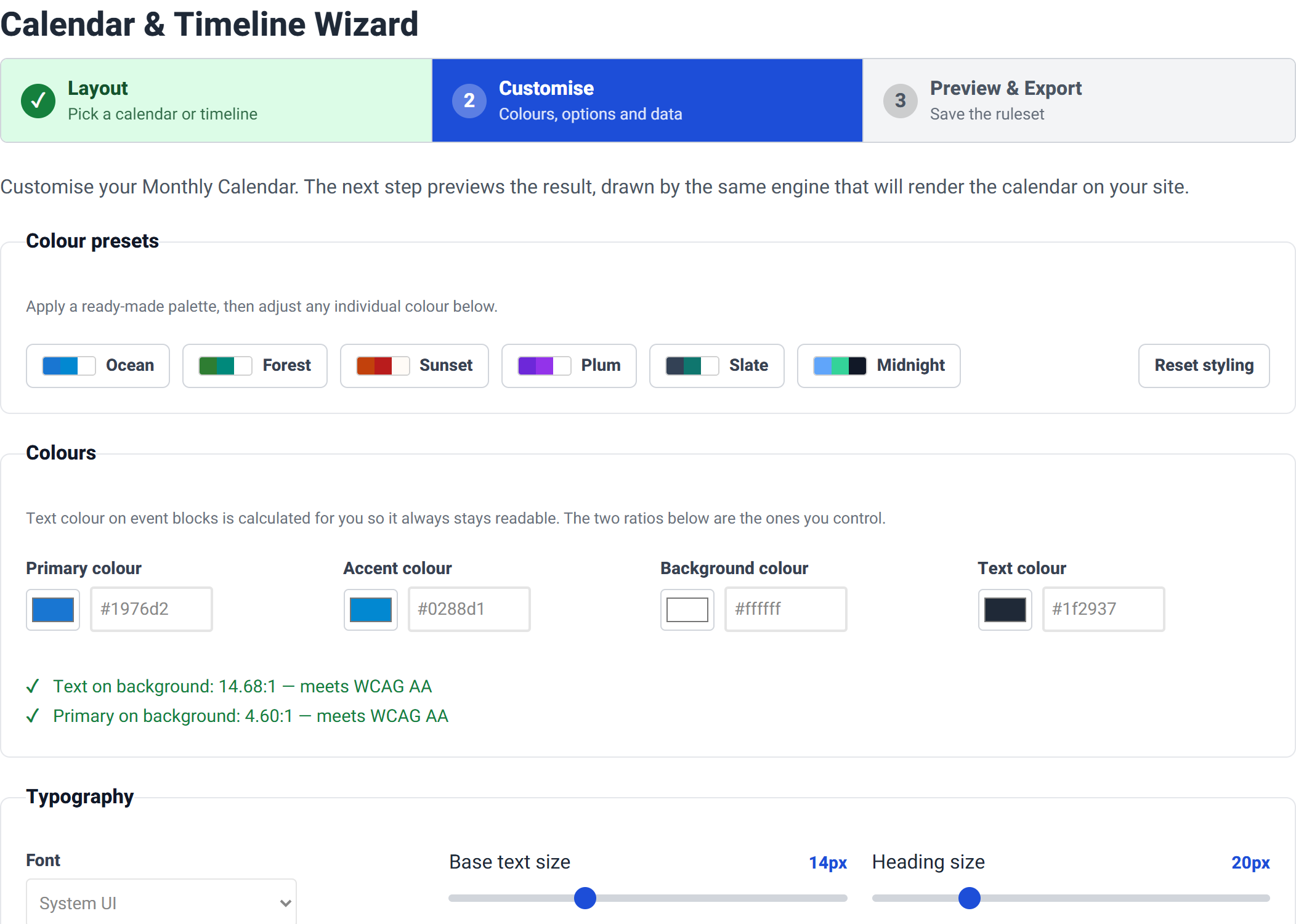

Step 2 — Customise

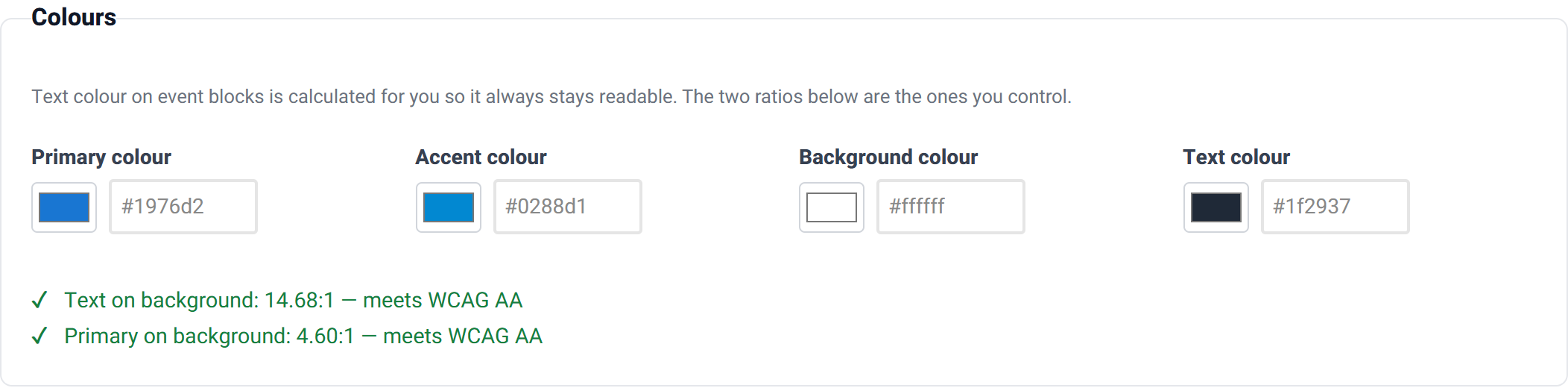

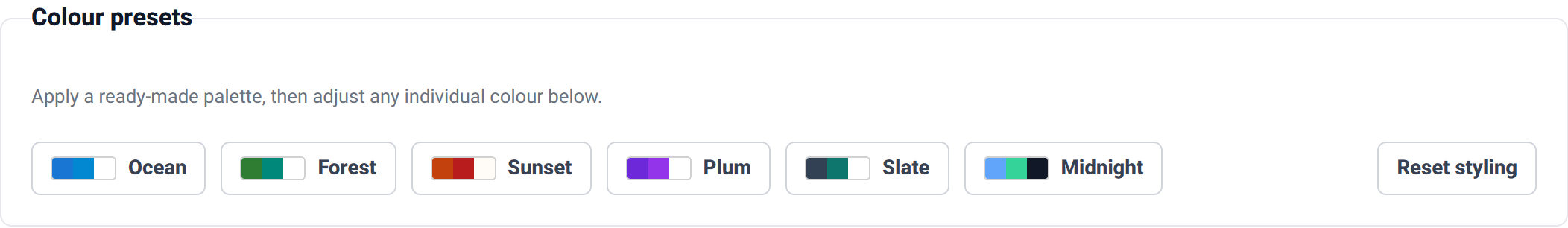

Colour presets and Colours

Six palettes — Ocean, Forest, Sunset, Plum, Slate and Midnight — then four individual colours: primary, accent, background and text.

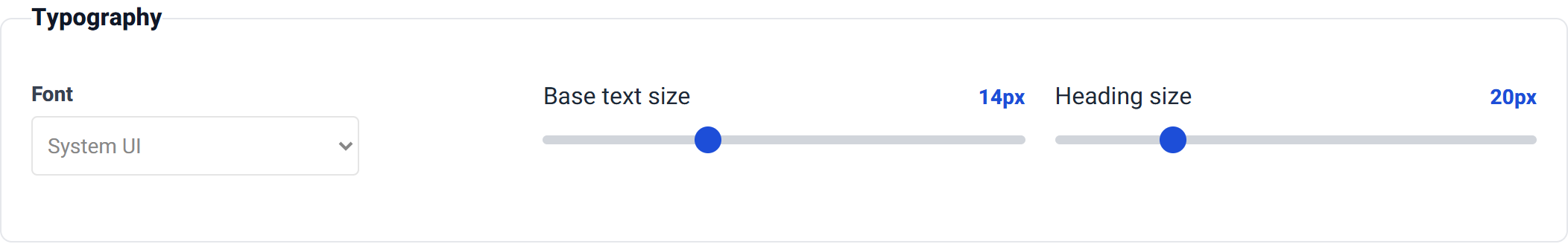

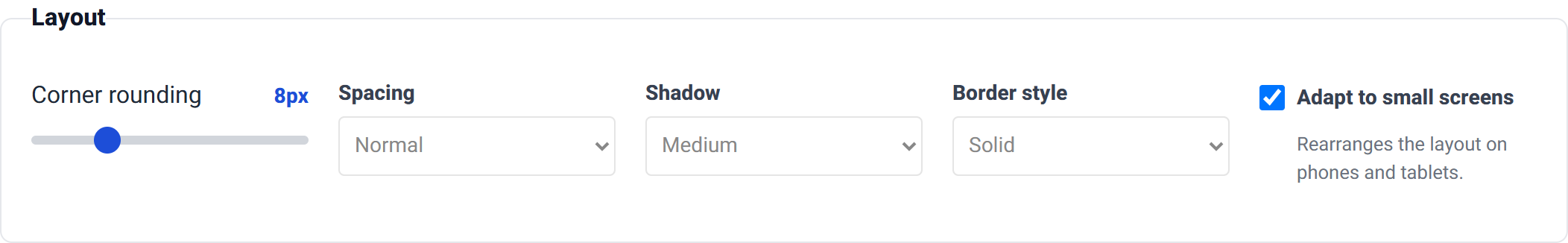

Typography and Layout

Typography sets the font, the body text size (10–22px, default 14) and the heading size (14–40px, default 20). Layout covers the corner radius, spacing (compact, normal, relaxed), shadow, border style, and — for the week and day views — the height of one hour slot on the time axis.

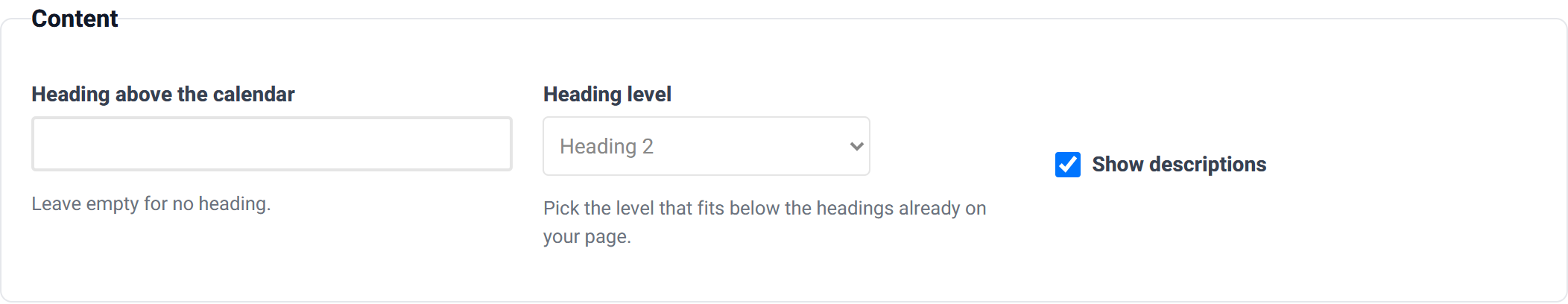

Content

An optional title above the calendar with its own heading level, and whether event descriptions are shown. Leave the title empty when your page already has a heading.

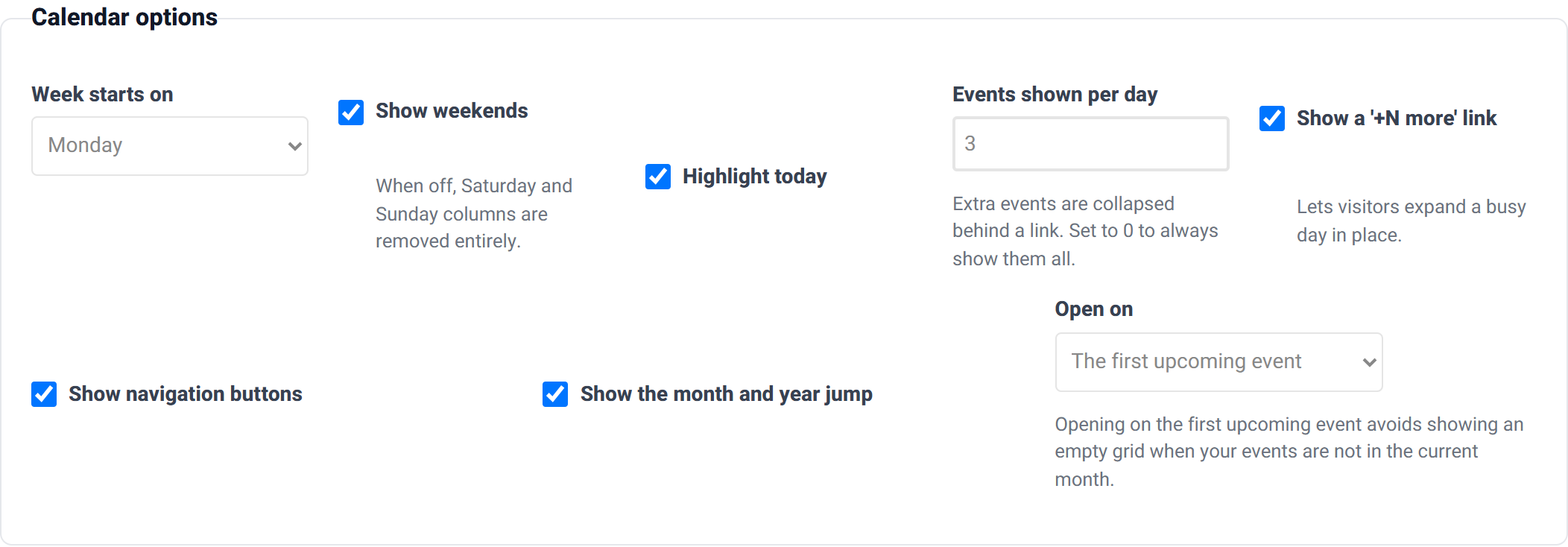

Calendar options

Shown for the calendar layouts. Which controls appear depends on the layout you chose.

Setting	Default	Notes
Show weekends	On	When off, the Saturday and Sunday columns are removed entirely — useful for a working-week timetable.
Highlight today	On	Outlines the current day.
Week starts on	Monday	Switch to Sunday for US conventions.
Events per day	3	Extra events collapse behind a link. Set to 0 to always show them all.
Show the “more” count	On	Lets visitors expand a busy day in place.
Show navigation	On	The previous / today / next buttons.
Show quick jump	On	The month and year selectors.
Open on	First event	See the note below.
Time axis range	Fit the data	Week and day views. Fitting the hours in your data means early and late events are never cut off.
Agenda range	30 days	How far ahead one page of the agenda reaches.

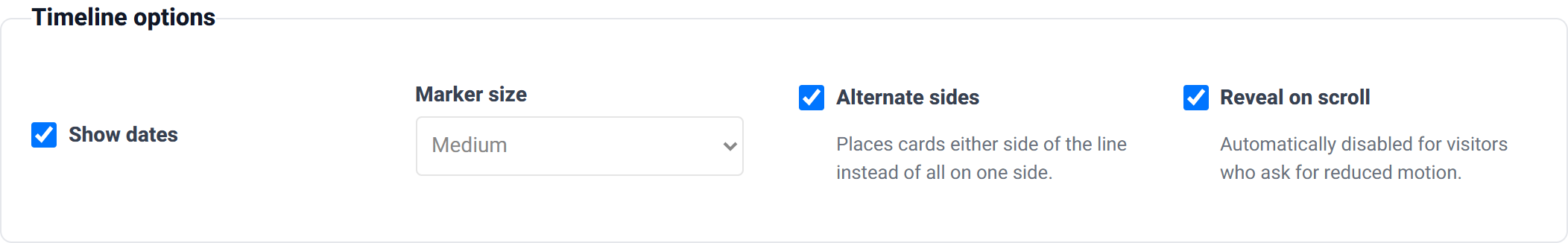

Timeline options

Shown instead of Calendar options when you pick a timeline layout.

Setting	Default	Notes
Show dates	On	The date beside each card.
Marker size	Medium	The dot on the spine. Milestones are drawn larger whatever this is set to.
Alternating sides	On	Places cards either side of the line instead of all on one side. Offered by the standard vertical and horizontal timelines.
Animate on scroll	On	Cards fade in as they come into view. Automatically disabled for visitors who ask for reduced motion.

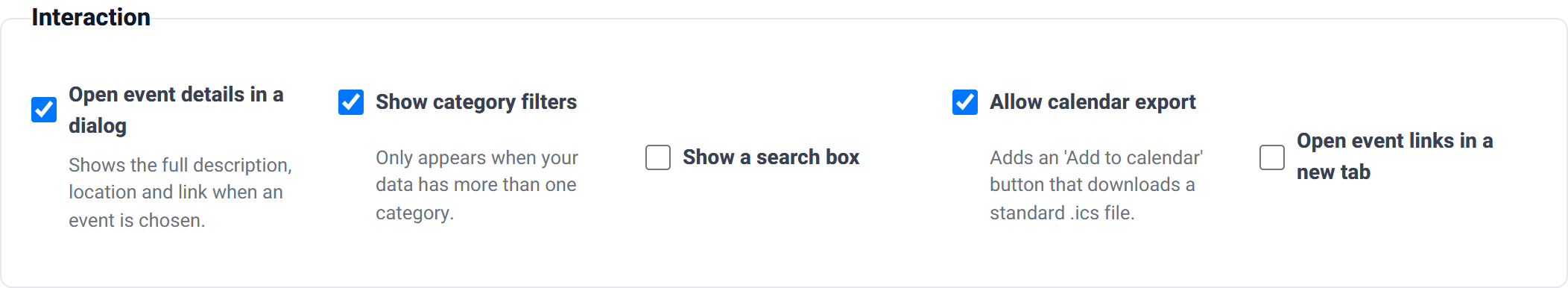

Interaction

Setting	Default	Notes
Event dialog	On	Shows the full description, location and link when an event is chosen.
Category filters	On	The coloured chips. Only appear when your data has more than one category.
Search box	Off	Filters events by text. Worth turning on for a long agenda or a busy year.
Add to calendar	On	Adds a button that downloads a standard .ics file, which opens in Outlook, Google Calendar, Apple Calendar and the rest.
Open links in a new tab	Off	Applies to events that have a url.
Responsive	On	Rearranges the layout on phones and tablets.

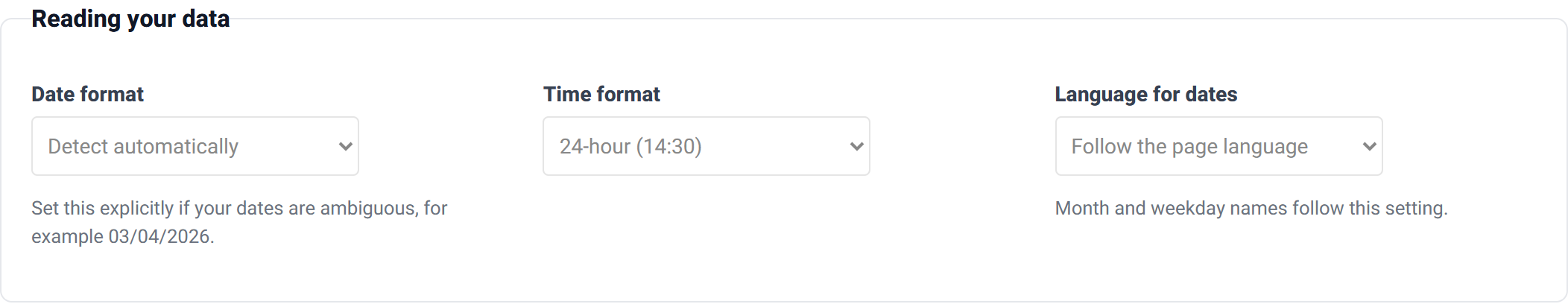

Reading your data

How the wizard should interpret what it finds in your table.

• Date format — auto by default. Set it explicitly if your dates are ambiguous: 03/04/2026 is 3 April to a British reader and 4 March to an American one, and only you know which you meant.
• Time format — 24-hour or 12-hour clock.
• Locale — the month and weekday names.

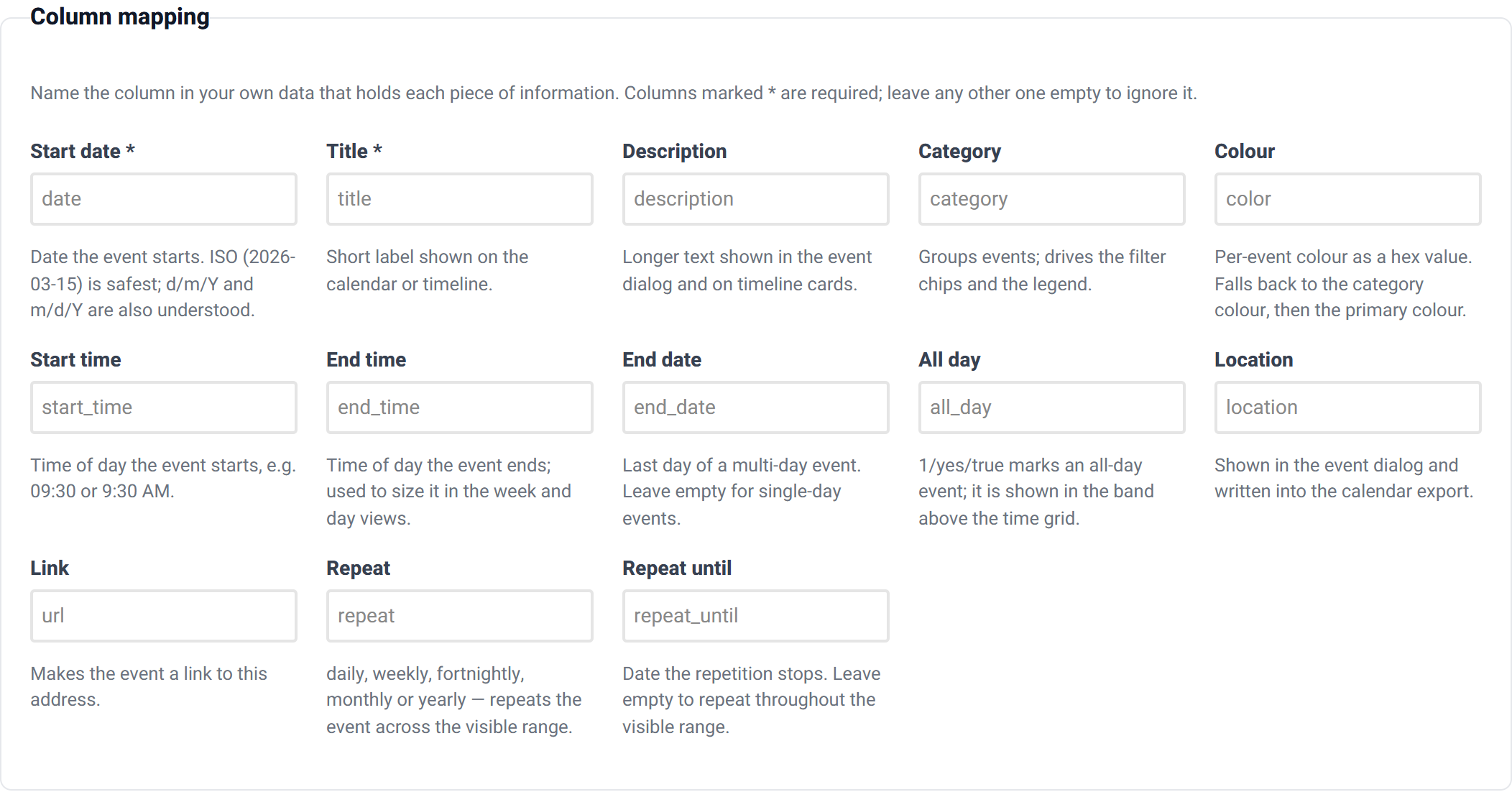

Column mapping

This group is unique to this wizard. Rather than renaming the columns in your own table, you tell the wizard which of your column names holds each piece of information.

If your spreadsheet calls the date column when and the title column event, put those names here and leave your table alone. Leave any row empty to ignore that piece of information entirely.

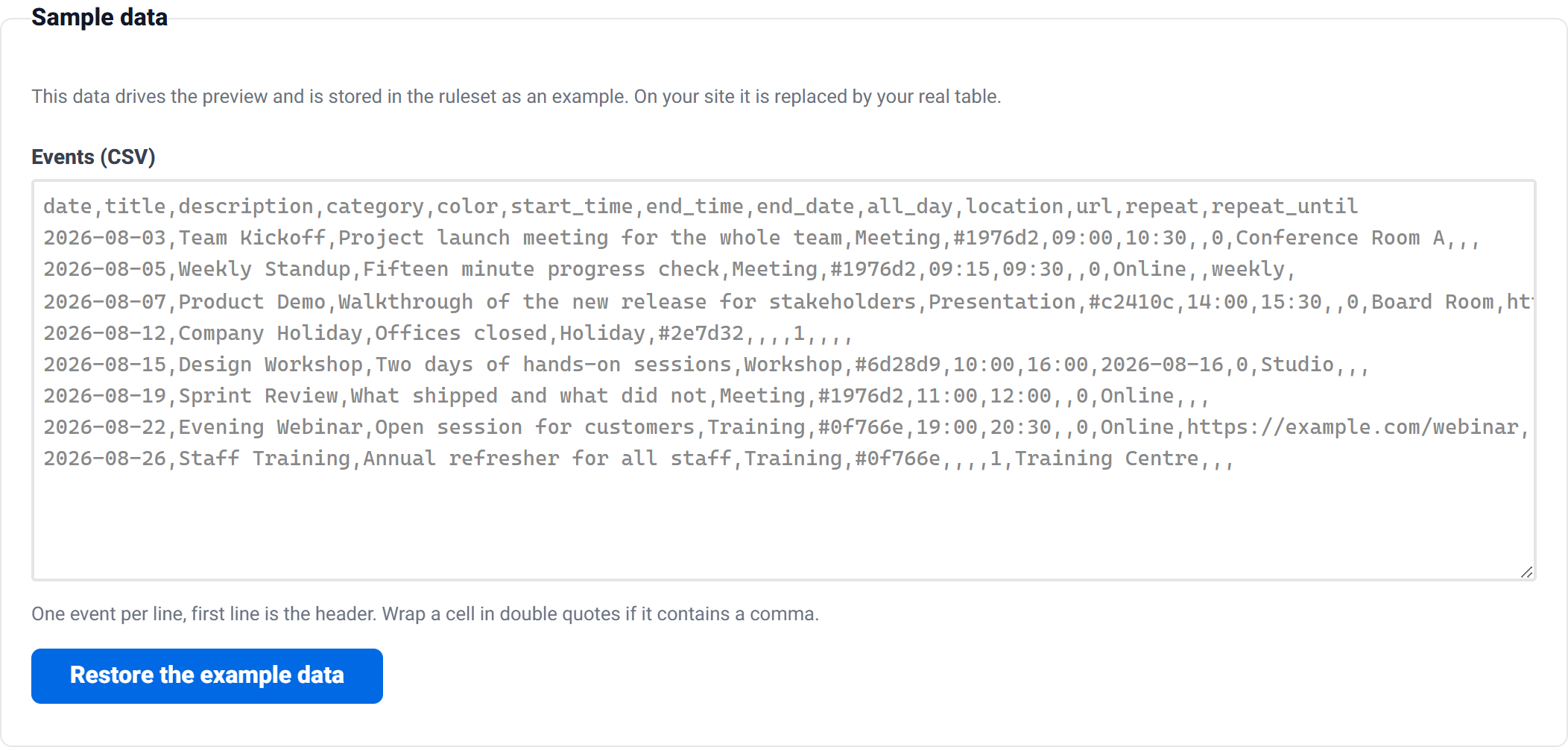

Sample data

The events that drive the preview, and that are stored in the ruleset as an example. On your site they are replaced by your real table. One event per line, first line is the header; wrap a cell in double quotes if it contains a comma.

The columns

Only date and title are required. Names are matched case-insensitively and common alternatives are accepted.

Column	Required	What it does
date	Yes	Date the event starts. ISO (2026-03-15) is safest; d/m/Y and m/d/Y are also understood.
title	Yes	Short label shown on the calendar or timeline.
description	No	Longer text shown in the event dialog and on timeline cards.
category	No	Groups events; drives the filter chips and the legend.
color	No	Per-event colour as a hex value. Falls back to the category colour, then the primary colour.
start_time	No	Time of day the event starts, e.g. 09:30 or 9:30 AM.
end_time	No	Time of day it ends; used to size it in the week and day views.
end_date	No	Last day of a multi-day event. Leave empty for single-day events.
all_day	No	1/yes/true marks an all-day event, shown in the band above the time grid.
location	No	Shown in the dialog and written into the calendar export.
url	No	Makes the event a link.
milestone	No	1/yes/true draws a larger emphasised marker. Timelines.
repeat	No	daily, weekly, fortnightly, monthly or yearly.
repeat_until	No	Date the repetition stops. Leave empty to repeat throughout the visible range.

A worked example

date,title,description,category,color,start_time,end_time,end_date,all_day,location,url,repeat,repeat_until
2026-08-03,Team Kickoff,Project launch meeting for the whole team,Meeting,#1976d2,09:00,10:30,,0,Conference Room A,,,
2026-08-05,Weekly Standup,Fifteen minute progress check,Meeting,#1976d2,09:15,09:30,,0,Online,,weekly,
2026-08-07,Product Demo,Walkthrough of the new release,Presentation,#c2410c,14:00,15:30,,0,Board Room,https://example.com/demo,,
2026-08-12,Company Holiday,Office closed,Holiday,#15803d,,,,1,,,,
2026-08-15,Design Workshop,Two day workshop,Workshop,#7c3aed,10:00,17:00,2026-08-16,0,Studio,,,

Five rows, each demonstrating something different:

• Team Kickoff — an ordinary timed event.
• Weekly Standup — repeat=weekly with no repeat_until, so it recurs across the whole visible range.
• Product Demo — carries a url, so it becomes a link.
• Company Holiday — all_day=1 and no times.
• Design Workshop — an end_date a day later, so it spans two cells with a continuation arrow on the second.

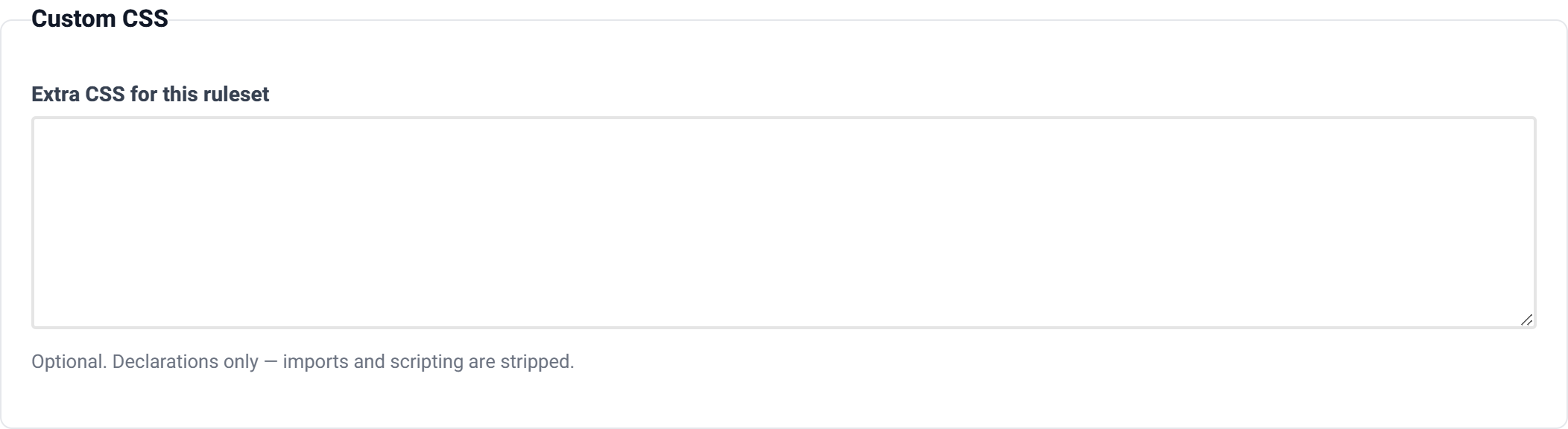

Custom CSS

Optional. Declarations only — imports and scripting are stripped.

Step 3 — Preview and export

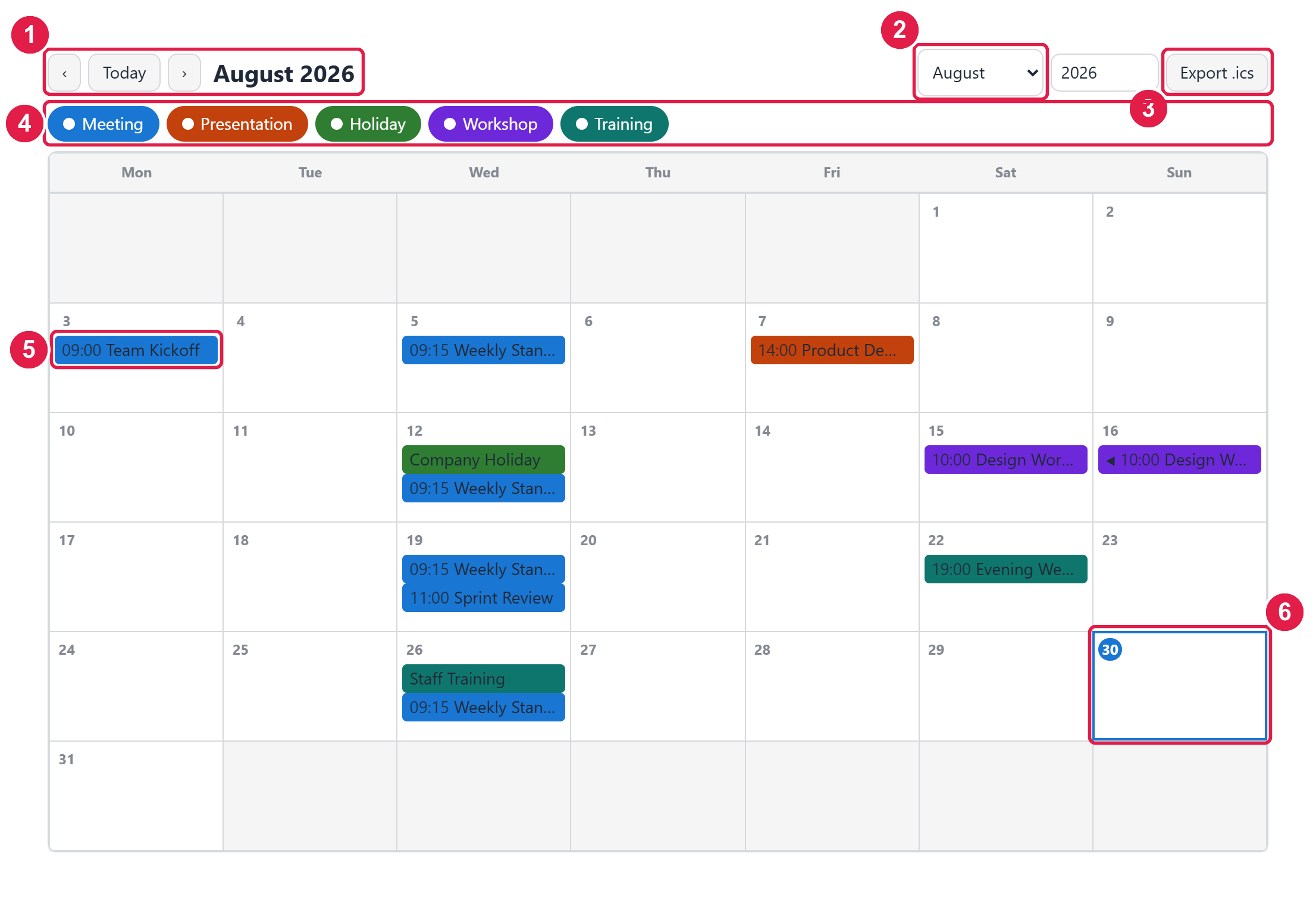

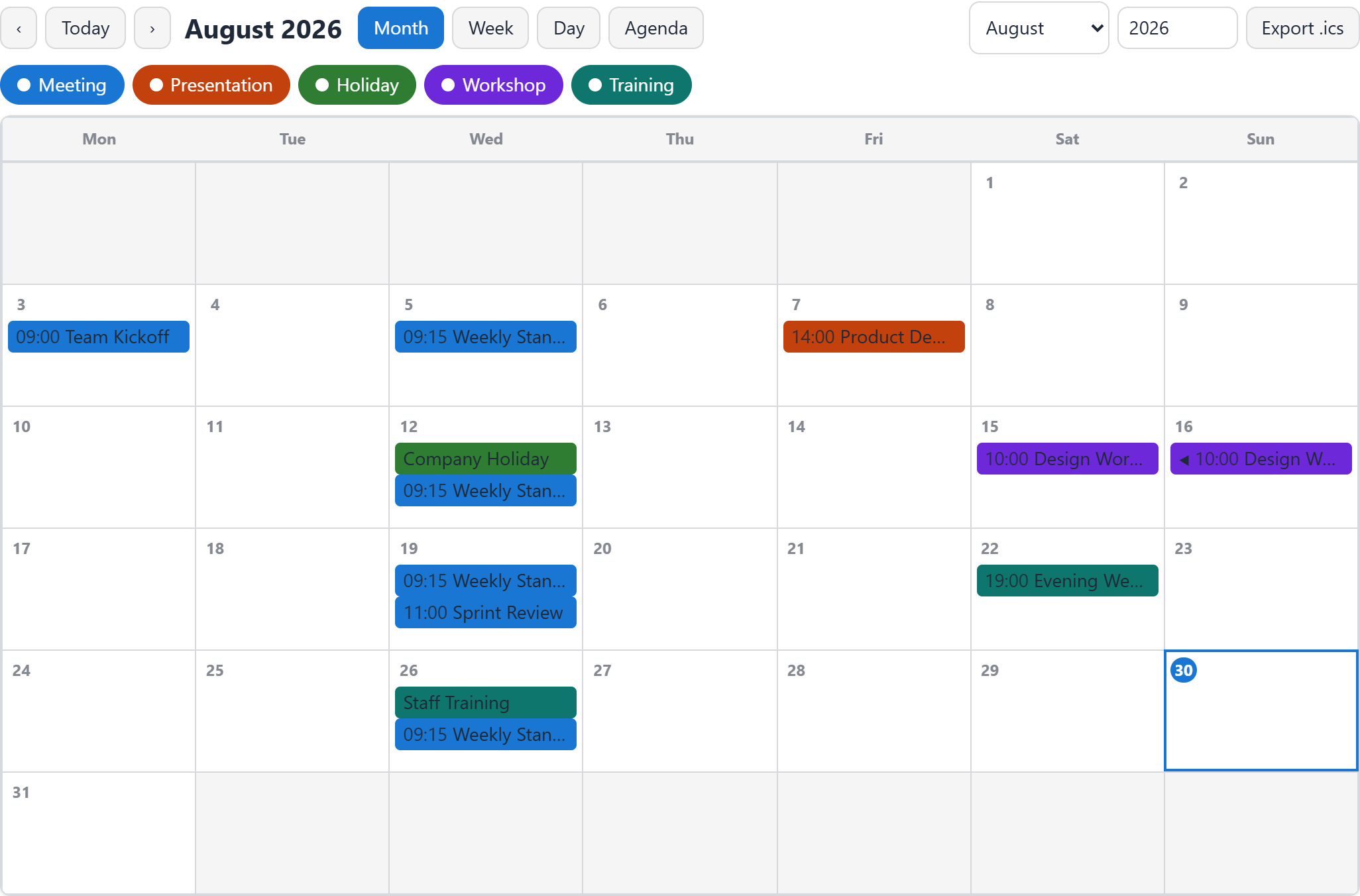

The preview is drawn by the same engine that will render the calendar on your site, and it is fully interactive — navigate months, open an event, try the filters.

1. Navigation — previous, today, next.
2. Quick jump — go straight to a month and year.
3. Add to calendar — downloads the whole calendar as an .ics file.
4. Category filters — one chip per category, in that category's colour.
5. An event — one row of your table. Note the standups repeating every Wednesday from a single row.
6. Today — outlined when Highlight today is on.

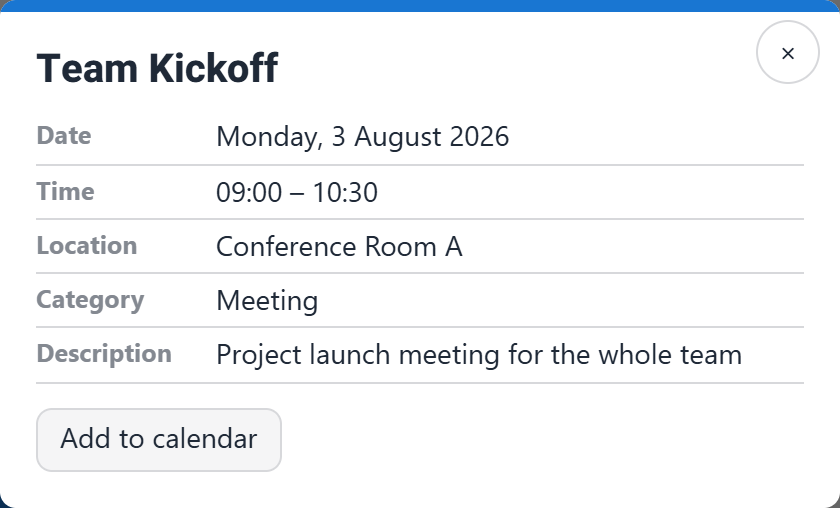

The event dialog

Choosing an event opens its full detail, including the location, the description and a per-event Add to calendar button.

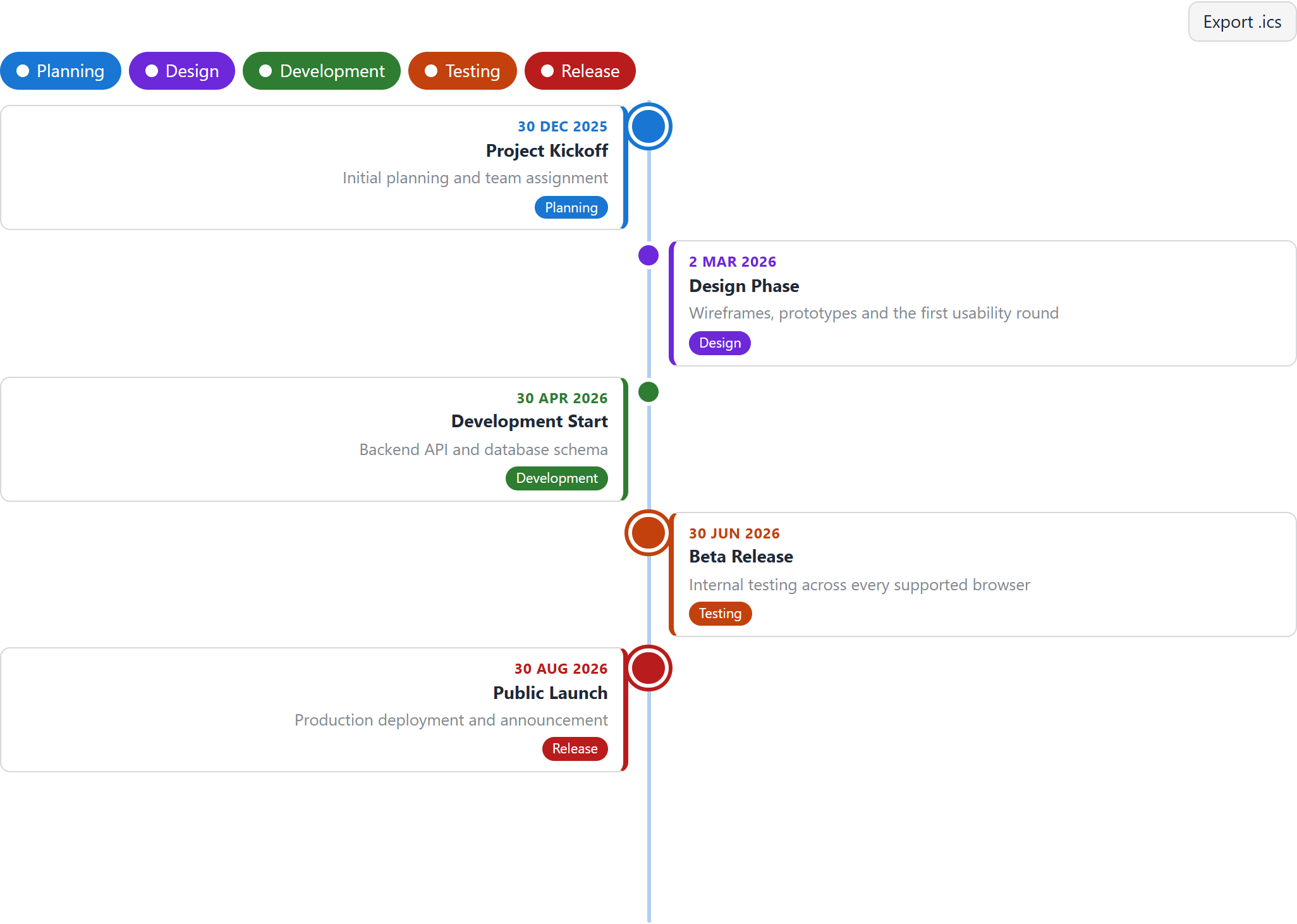

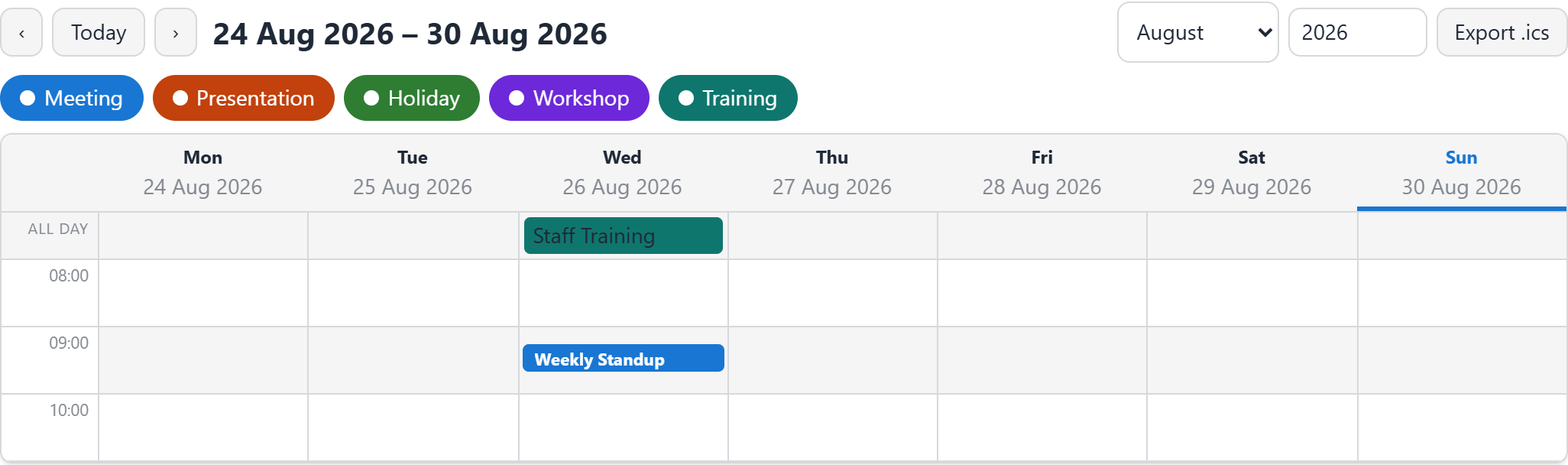

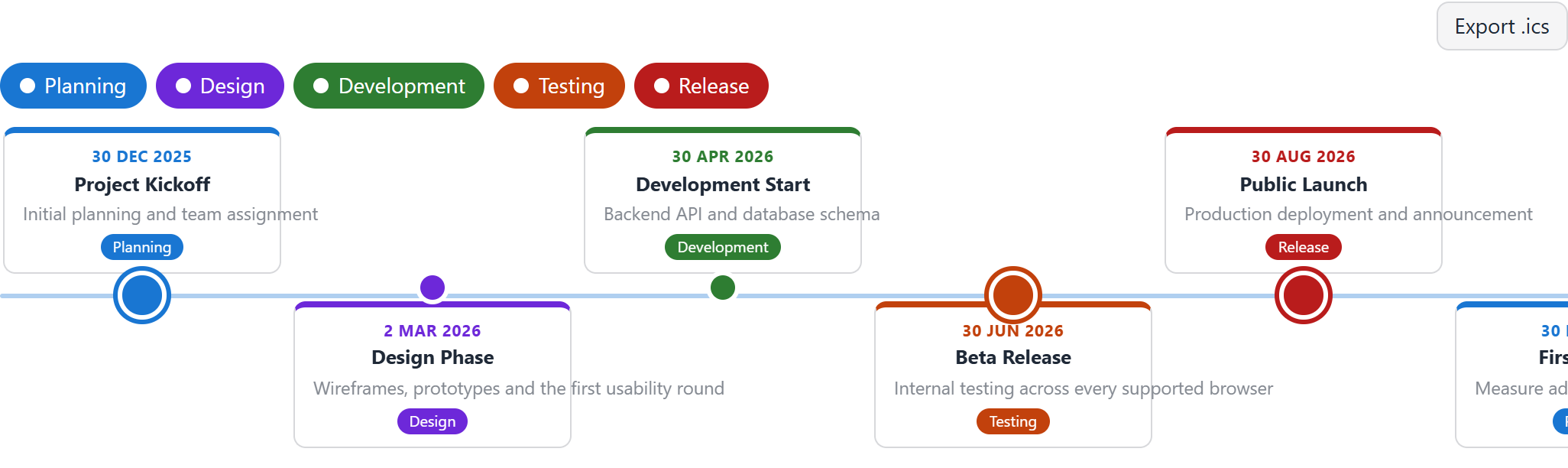

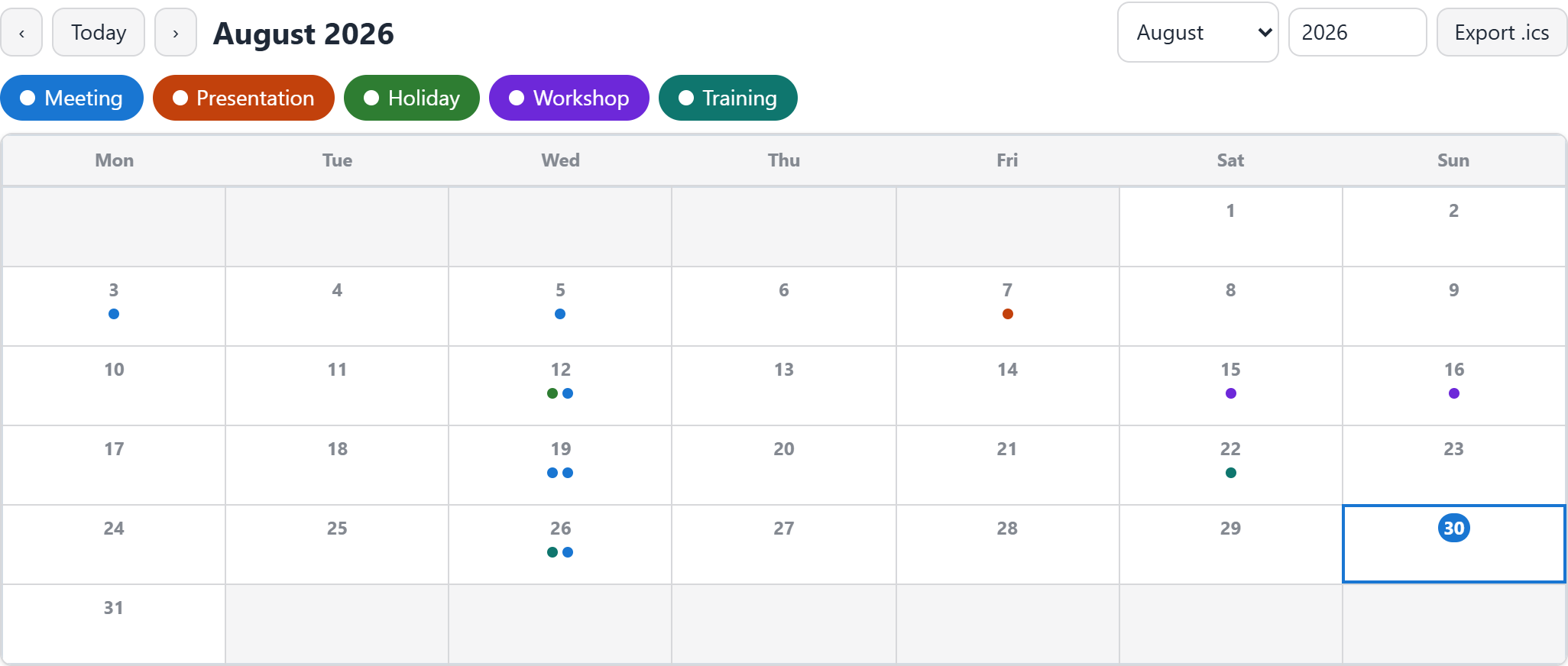

The other layouts

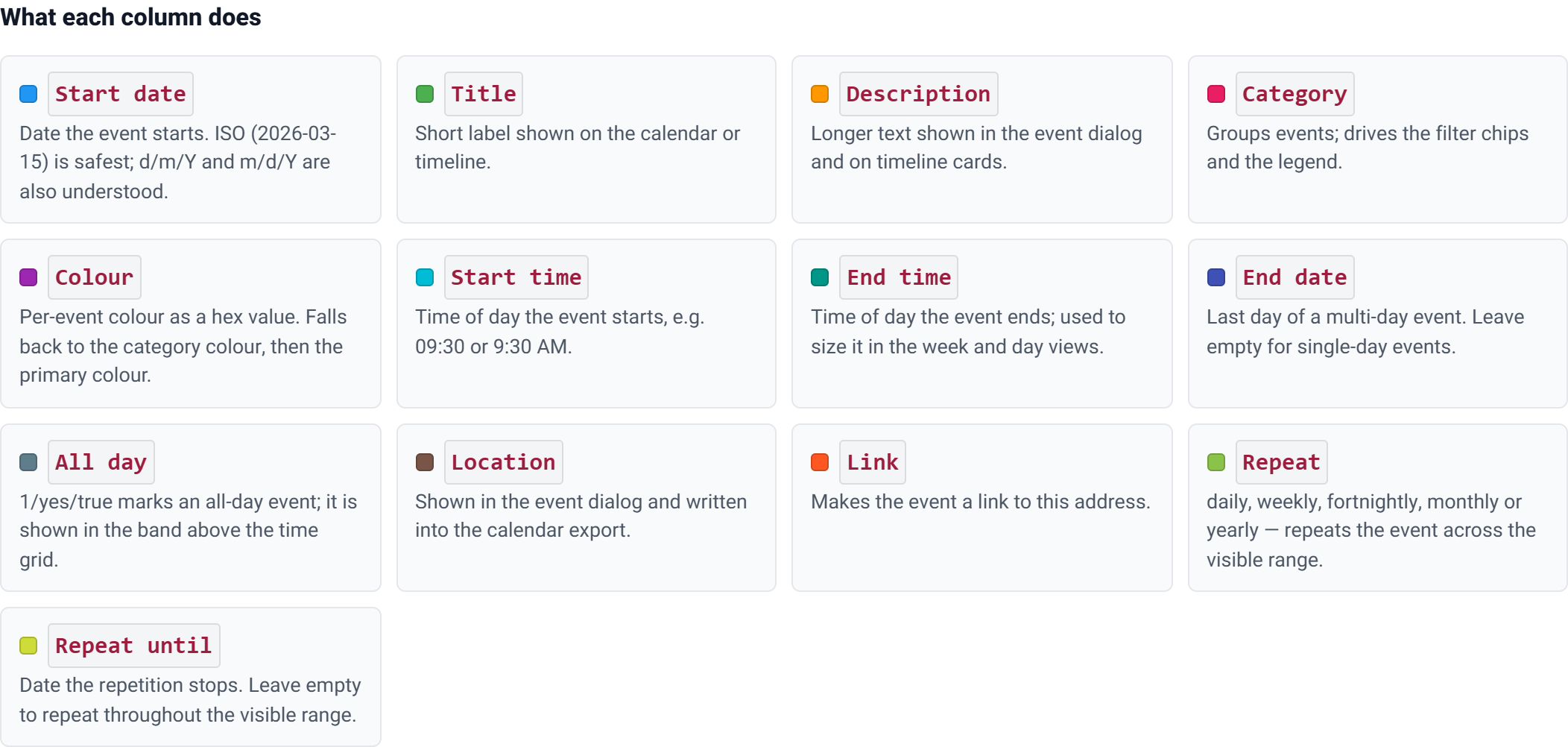

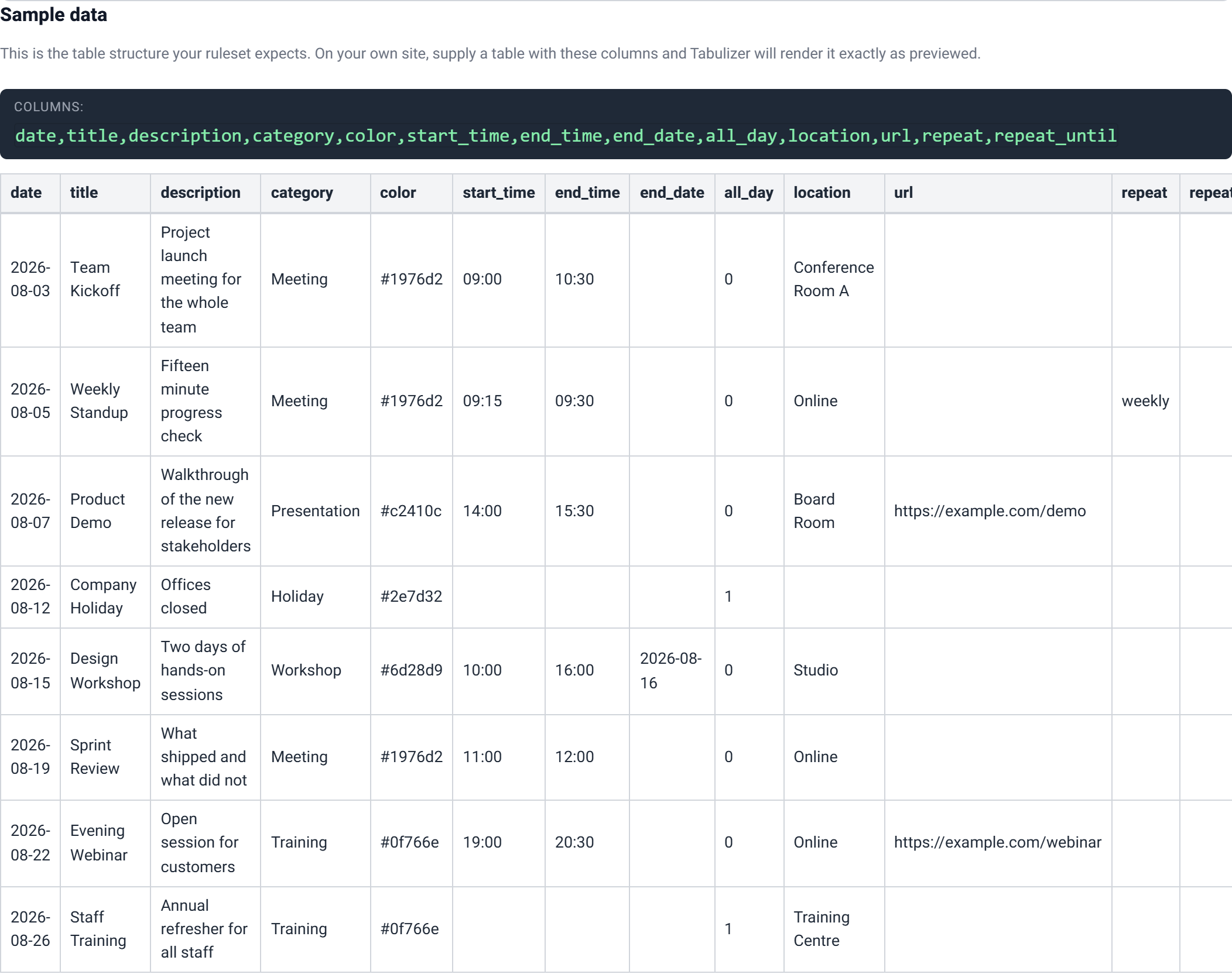

Expected input structure

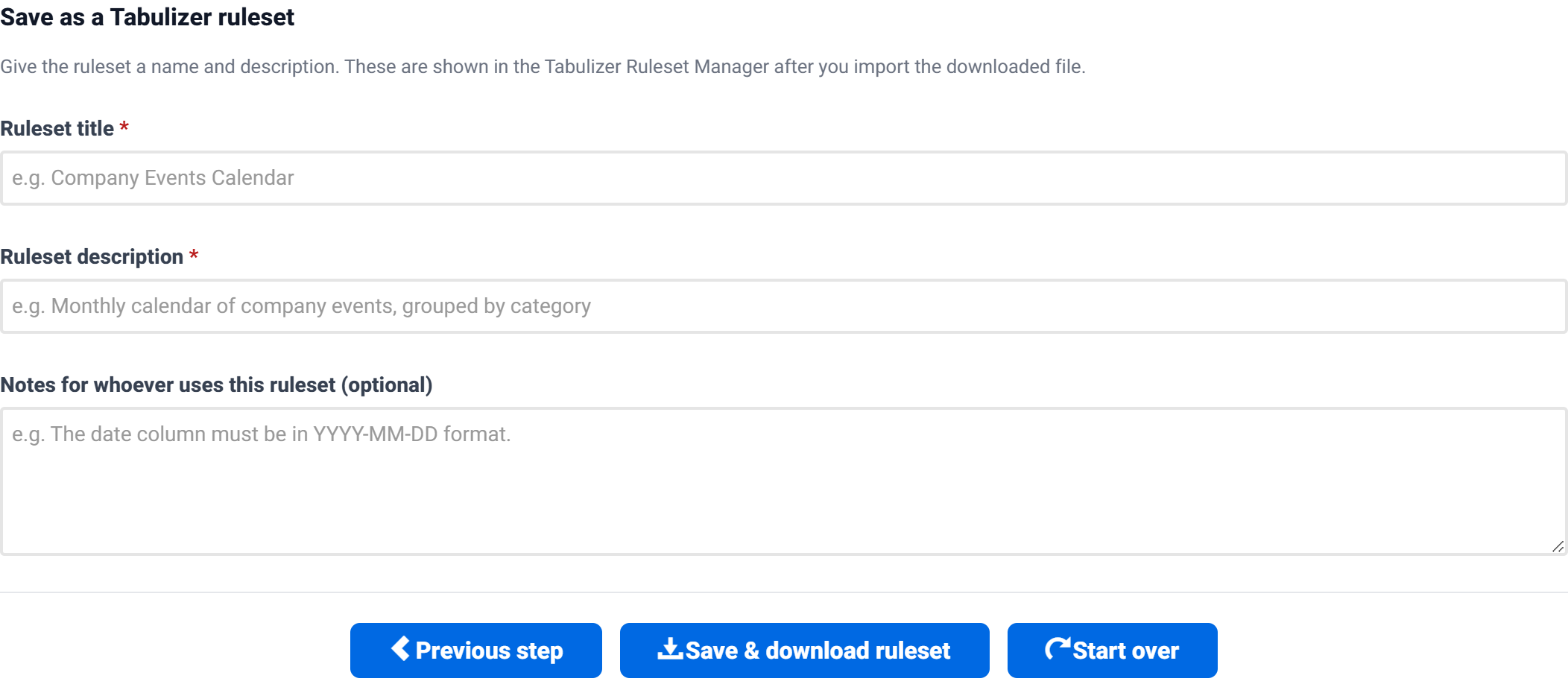

Save the ruleset

Give the ruleset a name and description — these are what you will see in the Tabulizer Ruleset Manager after importing — then Save and download.

Using the ruleset on your own site

1. In your site's administrator, open Tabulizer → Ruleset Manager and import the .zip you downloaded.
2. Create or edit the article that will hold the calendar.
3. Insert a table whose first row is the header, using the column names from the Expected input structure section — at minimum date and title.
4. Apply the imported ruleset to that table.

To add an event later, add a row. To cancel one, delete the row.

Tips and troubleshooting

The calendar opens on an empty month

Set Open on to first event in Calendar options. That opens the calendar on your first upcoming event rather than on the current month.

My dates are being read wrongly

03/04/2026 is genuinely ambiguous. Either write dates in ISO form (2026-03-15), or set Date format explicitly in Reading your data.

The category filters are missing

They only appear when your data has more than one distinct category value. With one category there is nothing to filter.

A busy day shows “+2 more”

That is the Events per day limit, 3 by default. Set it to 0 to always show every event, at the cost of uneven row heights.

Early or late events are cut off in the week view

Set Time axis range to fit the data, which sizes the axis to the earliest and latest times you actually have, rather than to a fixed working day.

A repeating event is not repeating

Check the repeat value is one of daily, weekly, fortnightly, monthly or yearly. Also check repeat_until is not set to a date in the past.

A multi-day event only shows on the first day

It needs an end_date. end_time only sets the time of day it finishes.

My column names do not match

Either rename your columns, or use the Column mapping group to name your columns without touching your table.

The timeline cards are all on one side

Turn on Alternating sides in Timeline options — and note that the “Modern” and “Classic” variants are single-sided by design, so choose the standard Vertical or Horizontal Timeline instead.
